Description

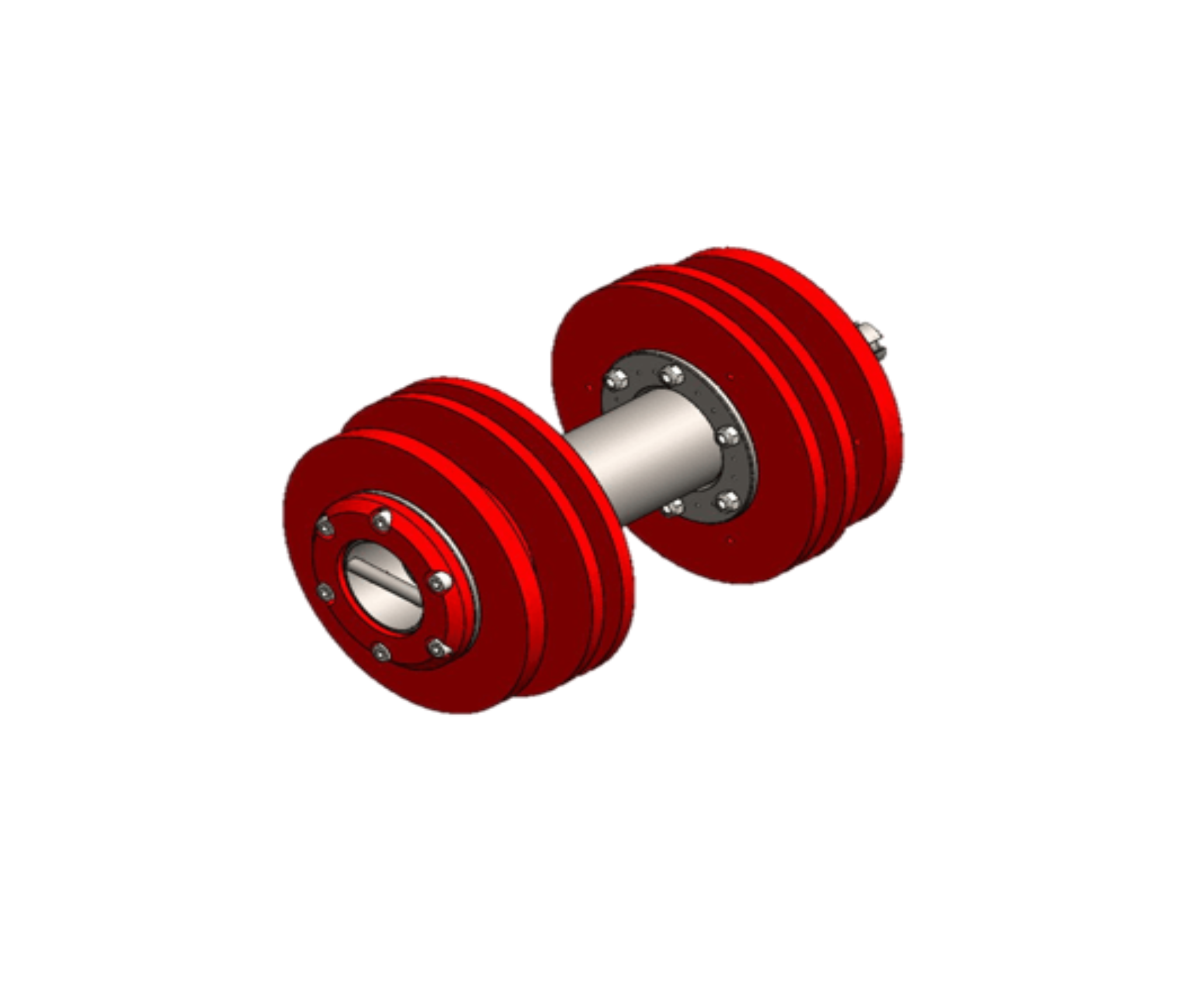

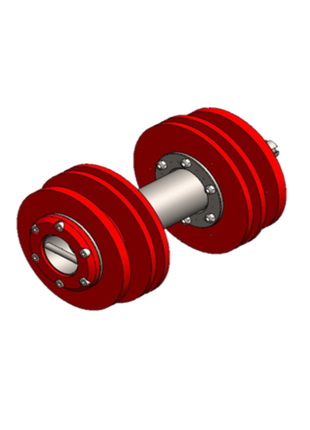

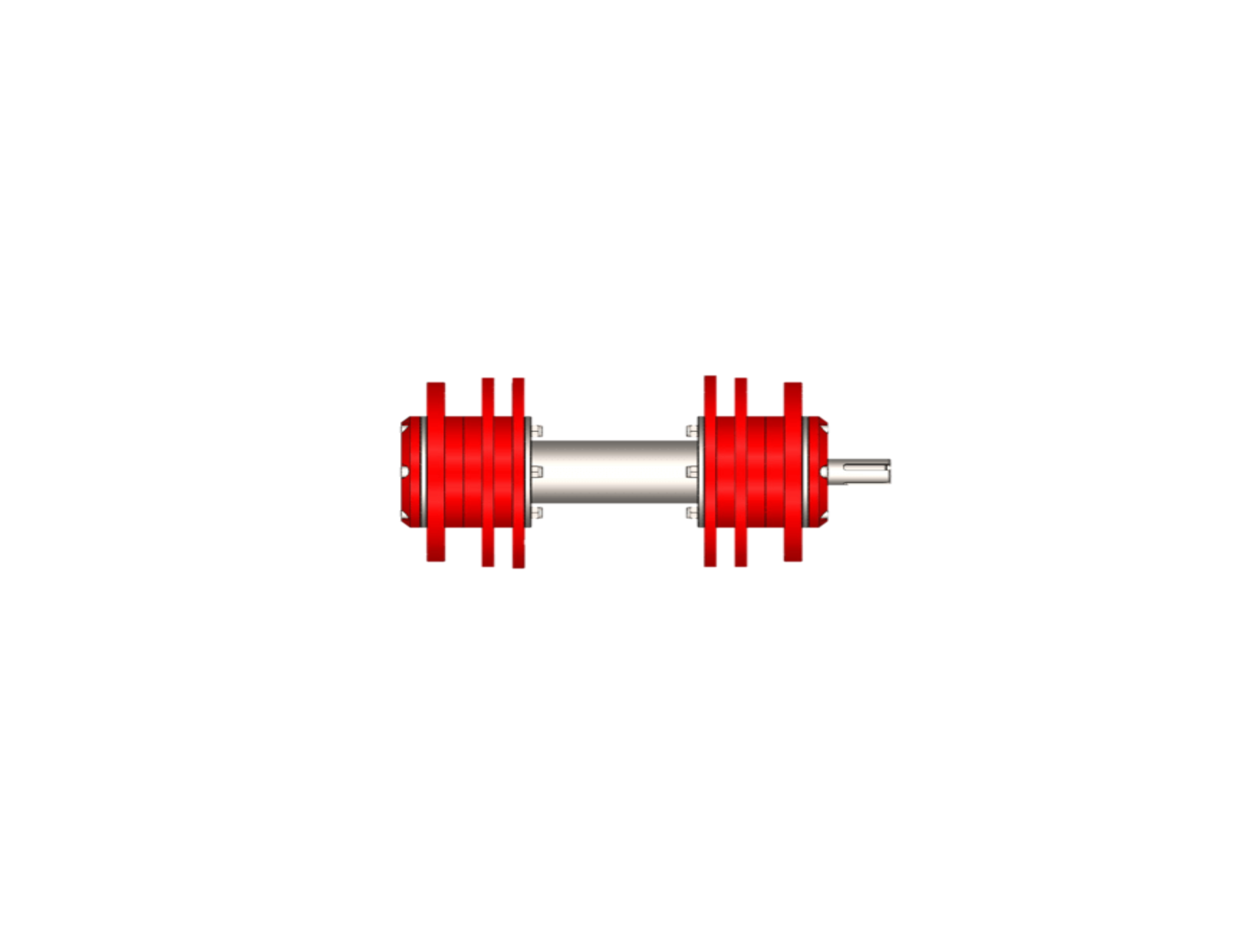

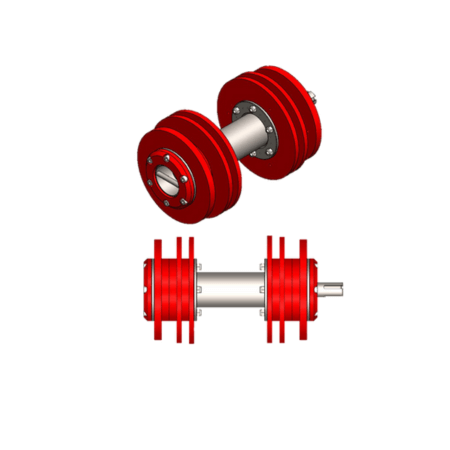

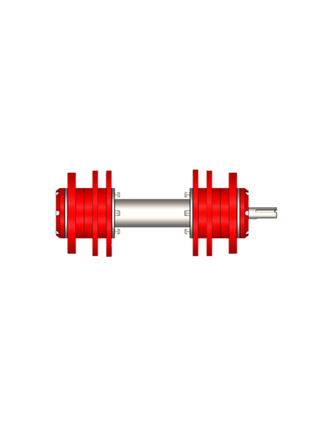

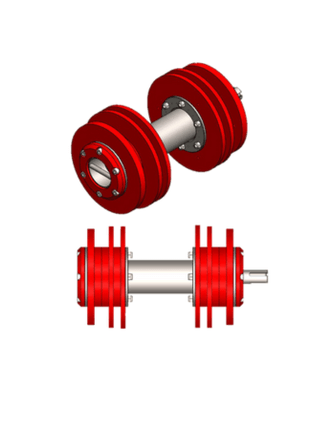

Bidirectional (BIDI) Pipeline (PIGs)
BIDI PIGs are engineered with 4 sealing discs and 2 guiding discs, ensuring optimal performance and versatility. These tools are designed to travel seamlessly along the pipeline axis in both directions, providing efficient and reliable pipeline operations. A transmitter is integrated into the PIG to enable real-time location tracking during operations, ensuring precision and safety.
Applications of BIDI PIGs
BIDI PIGs are utilized for the following critical pipeline operations:
- Commissioning and Dewatering
- Hydrostatic Testing
- Water Displacement
- Debris Removal
- Rescue Operations
Tool Configuration Notes
-
Standard Configuration for Long Runs:
-
4 Spacers and 2 Guiding Discs are included as standard.
-
Custom configurations are available for non-standard pipelines.
-
Wye Tee Configuration:
-
Additional Cleaning Section Cost will be applied.
-
Mechanical Joint Cost will also be added.
-
Material Specifications:
- Prices are based on galvanized steel wire.
-
Extra charges will apply for pencil brushes if required.
-
Customization Options:
- PIGs can be fully customized to meet specific pipeline requirements, including design services for launchers and receivers.
-
Polyurethane Items:
-
Mold costs may be charged separately for low quantities or non-standard items.
-
Internal Coated Pipelines:
-
Additional costs will apply for brush tools and gauge tools.
-
Exclusions from Standard Pricing:
- The standard price list does not apply to the following scenarios:
- Pipelines with >2% H2S content.
- Gas pipelines exceeding 150 km.
- Pipelines carrying butane or other corrosive materials.
- Liquid pipelines exceeding 220 km.
- For technical and commercial quotations in these cases, please contact Sales@pipeworktech.com.
Why Choose Our BIDI PIGs?
-
Dual-direction functionality for enhanced operational efficiency.
-
Real-time tracking for precise monitoring.
-
Customizable designs to suit unique pipeline requirements.
-
Robust construction for durability in challenging environments.
For further inquiries or to request a tailored solution, please reach out to our sales team at Sales@pipeworktech.com.
